Toshiba Copier Error Codes C411-C4B0: Causes and Solutions for Fuser Temperature Errors

The fuser unit temperature control system may be causing an error code, which is commonly found on a copier. The fuser assembly heats and fixes toner onto paper, which means that any abnormal temperature detection, heating malfunction, or sensor failure can cause the printer to stop printing. Why? Identifying the root cause of these errors allows technicians to swiftly identify the problem and return to normal operations.

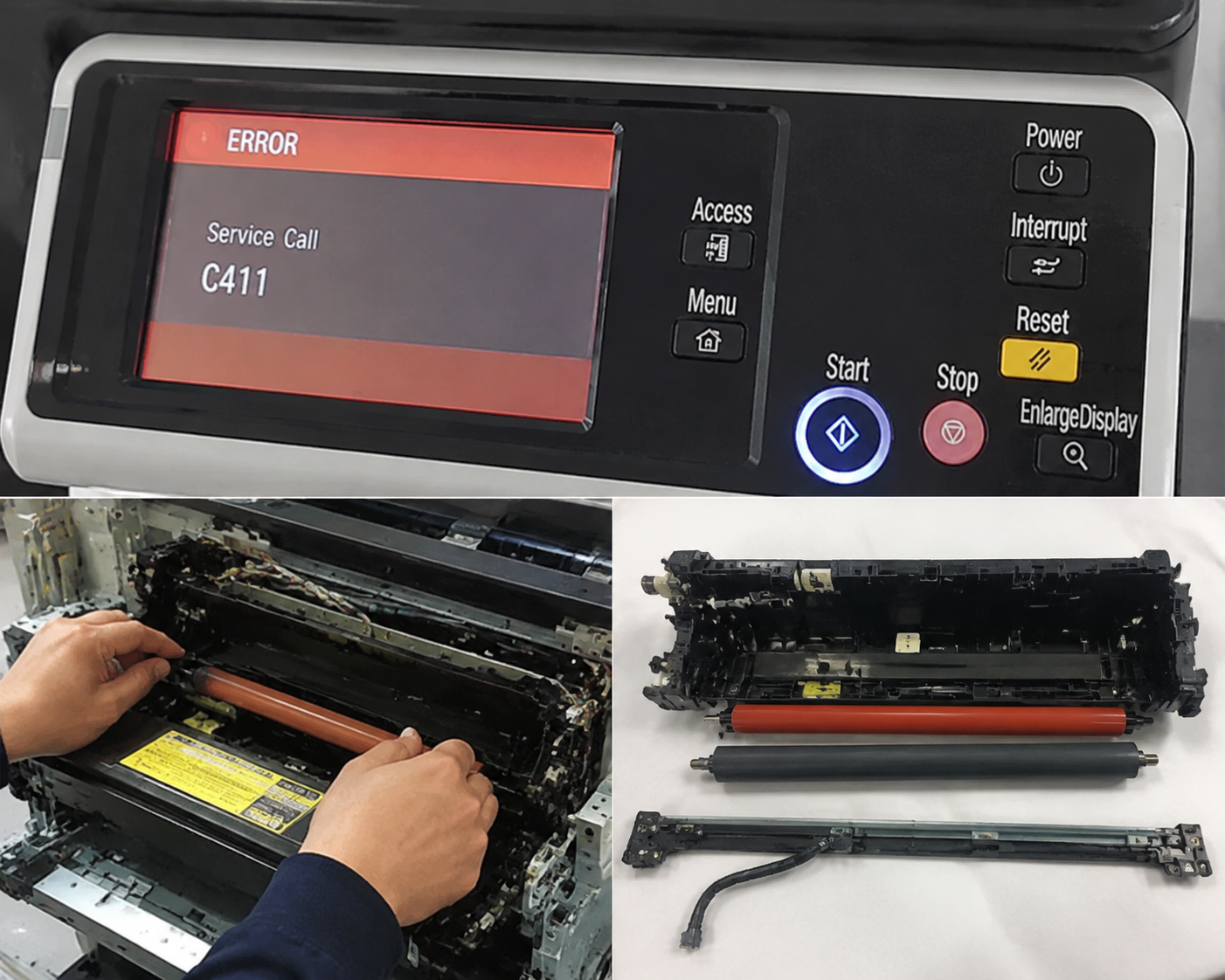

C411/C412 usually appear because the fuser heater does not heat properly after the machine is powered on. Possible causes include a damaged heating lamp, poor connection between the heater and power supply, or a faulty control board. C413 occurs when the copier detects that the fuser temperature does not reach the required level after heating. This may be caused by a weak heater, damaged thermistor, or unstable power supply. C414 is related to abnormal temperature after the warm-up process, often caused by incorrect temperature detection from the thermistor or a malfunctioning fuser control system.

Other temperature-related errors also have specific causes. C415 appears when the copier enters a low-temperature standby mode but cannot recover within the required time, usually due to a damaged heater or temperature sensor problem. C441 indicates an abnormal fuser heating condition with excessively high temperature detection. C443 is commonly caused by an abnormal heating resistance value, such as a damaged heater lamp or electrical connection issue. C445 occurs when the copier detects abnormal fuser temperature at the end of operation, while C447 may appear when the fuser temperature remains below 40°C during standby mode due to insufficient heating performance.

C449 is prone to high-temperature related failures, such as thermistor or control circuit breakdown, when the fuser temperature surpasses 240°C during printing. The symptoms of C450 may include erratic fuser heater resistance during printing, which can be caused by heater malfunction or poor electrical contact. The presence of C452 can be attributed to reasons such as an above-average temperature differential, uneven heating, sensor contamination, or fuser aging, particularly when the thermistor and edge heater are in standby mode. Achieving an abnormal fuser count or providing incorrect counter information can result in C4B0, which is caused by two factors: reaching the replacement limit.

The fuser heater, thermistor, thermostat, pressure roller, and other electrical components must be repaired by technicians to identify these problems. This procedure requires an inspection. The resolution of these errors can be achieved by repairing the thermistor surface, verifying wiring connections, resets the fuser counter, or replacing damaged fusery components. The regular maintenance of replacement fuser units can minimize temperature breakdowns and enhance the reliability for frequently used office copiers. Additionally, they ensure consistent printing quality.

Understanding the causes behind copier error codes C411-C4B0 allows repair professionals and distributors to diagnose failures more efficiently. Whether servicing Konica Minolta, Canon, Ricoh, Kyocera, Xerox, or other copier brands, using high-quality compatible fuser assemblies and spare parts is essential for maintaining consistent print quality and extending machine service life.
