Understanding the Essential Role of Printer Fuser Units
In the intricate world of printing technology, the fuser unit stands as a critical component that transforms digital documents into lasting impressions on paper. This vital assembly is responsible for permanently bonding toner particles to paper through a precise combination of heat and pressure. Without a properly functioning fuser unit, your printouts would simply be loose toner powder that smudges at the slightest touch.
The fuser unit represents the final stage in the printing process, where all the previous steps of image formation come together to create permanent, professional-quality documents. Whether you're running a busy office or maintaining a home printer, understanding how the fuser unit works can help you better maintain your printer and troubleshoot common printing issues.
Core Components and Mechanism of Fuser Units

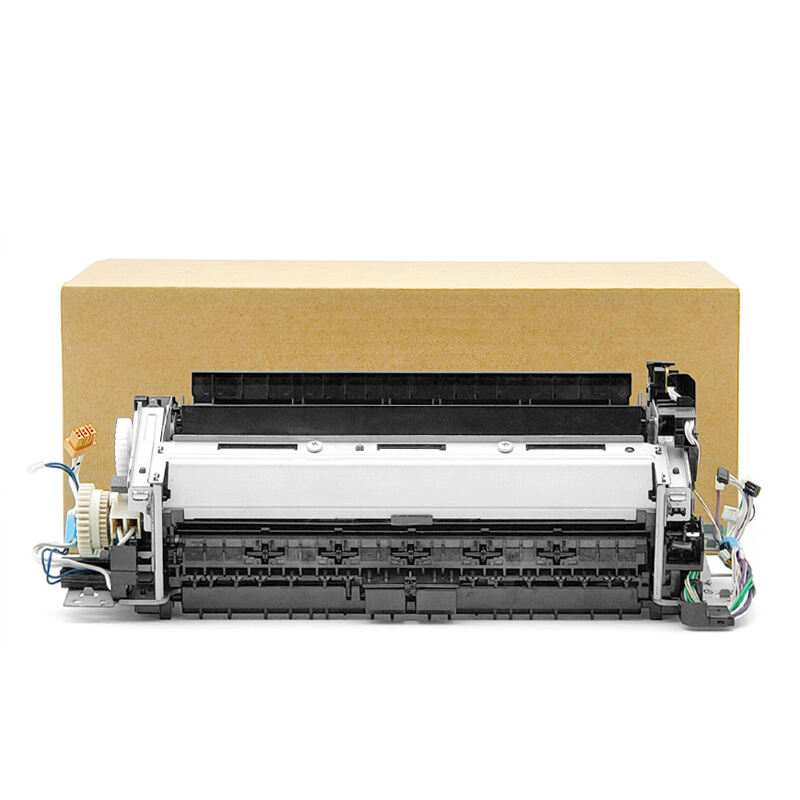

Primary Components of a Fuser Assembly

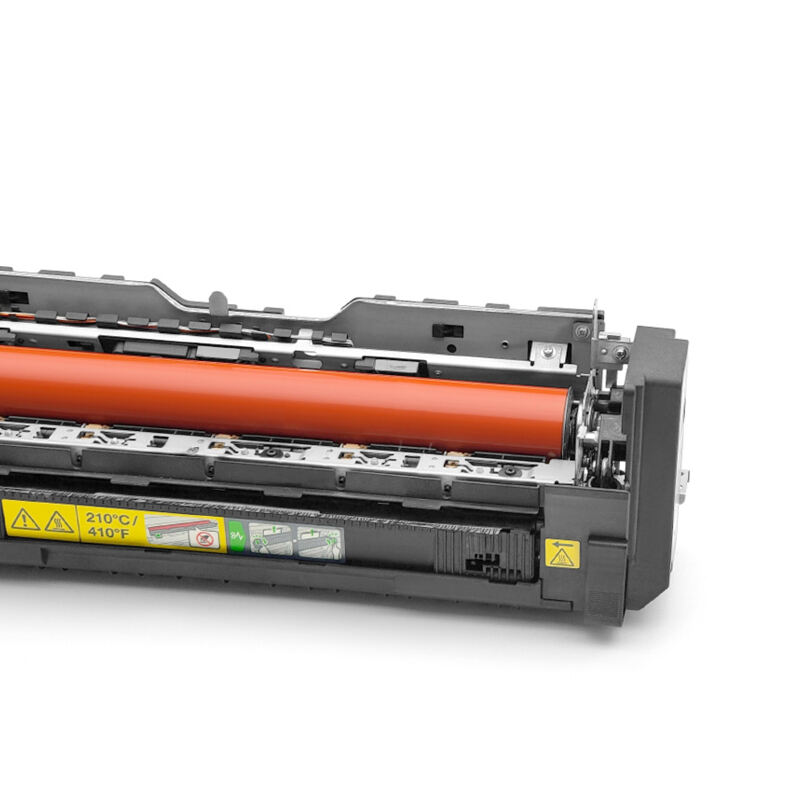

The fuser unit consists of several key components working in harmony. At its heart are two main rollers: the heat roller (also called the upper roller) and the pressure roller (lower roller). The heat roller contains a heating element, typically a halogen lamp or ceramic heater, that maintains a consistent high temperature. The pressure roller is covered with a soft, heat-resistant rubber material that helps create the necessary pressure for fusing.
Additional components include thermistors to monitor and regulate temperature, cleaning mechanisms to prevent toner buildup, and guide plates to ensure proper paper movement. These parts work together to ensure uniform heat distribution and consistent print quality.
The Science Behind Fusing Technology
The fusing process relies on a delicate balance of heat and pressure. The heat roller typically operates at temperatures between 350-425 degrees Fahrenheit (175-220 degrees Celsius). When paper passes through the fuser unit, the heat melts the toner particles while the pressure roller ensures they're firmly pressed into the paper fibers. This process happens in a fraction of a second, requiring precise timing and temperature control.
Modern fuser units employ advanced materials and technologies to improve efficiency and reduce energy consumption. Innovations in heating elements and temperature control systems have led to faster warm-up times and more consistent results across different paper types.
Types and Variations of Fuser Units
Film Fusing Technology
Film-based fuser units represent a newer innovation in printing technology. These units use a thin film sleeve around the heating element instead of a solid roller. The film heats up more quickly than traditional rollers, reducing warm-up time and energy consumption. This technology is particularly common in smaller, more efficient office printers.
The film fusing method also allows for more precise temperature control and better adaptation to different paper types. The reduced thermal mass of the film means faster temperature adjustments and less energy waste during standby periods.
Belt Fusing Systems
Belt fusing systems are often found in high-speed production printers and commercial printing equipment. These systems use a flexible belt that provides extended contact time between the heated surface and paper, allowing for better toner penetration and improved print quality, especially on thick or textured media.
The extended fusing zone in belt systems also allows for lower operating temperatures while maintaining print quality, which can help reduce energy consumption and extend the life of printer components.
Maintenance and Care of Fuser Units
Regular Maintenance Practices
Proper maintenance of the fuser unit is crucial for optimal printer performance. Regular cleaning of the rollers prevents toner buildup and paper dust accumulation, which can affect print quality and cause paper jams. Many printers have built-in cleaning cycles that should be run according to the manufacturer's recommendations.
It's important to use appropriate cleaning materials and techniques to avoid damaging the delicate surfaces of the fuser components. Some printers use specialized cleaning sheets that can be run through the printer to remove debris and maintain proper functionality.
Troubleshooting Common Issues
Common fuser-related problems include wrinkled papers, toner not properly fusing to the page, and repetitive marks on printouts. These issues often indicate that the fuser unit needs attention or replacement. Regular monitoring of print quality can help identify potential problems before they become serious.
When troubleshooting, it's essential to check the fuser temperature settings, ensure proper paper type settings, and verify that the pressure roller is functioning correctly. Many modern printers have diagnostic tools that can help identify specific fuser-related issues.
Frequently Asked Questions
How long does a fuser unit typically last?
A fuser unit's lifespan varies depending on usage patterns and printer model, but typically ranges from 100,000 to 200,000 pages. Heavy use, paper quality, and environmental conditions can impact its durability. Regular maintenance can help extend the life of your fuser unit.
Can I replace a fuser unit myself?
While some printer models allow for user replacement of fuser units, it's often recommended to have a qualified technician perform this task. The process involves working with components that operate at high temperatures and requires proper handling to ensure safety and correct installation.
What causes fuser unit failure?
Common causes of fuser unit failure include normal wear and tear, paper jams, use of inappropriate paper types, and electrical issues. Operating the printer in extreme environmental conditions or using non-recommended supplies can also contribute to premature fuser failure.
